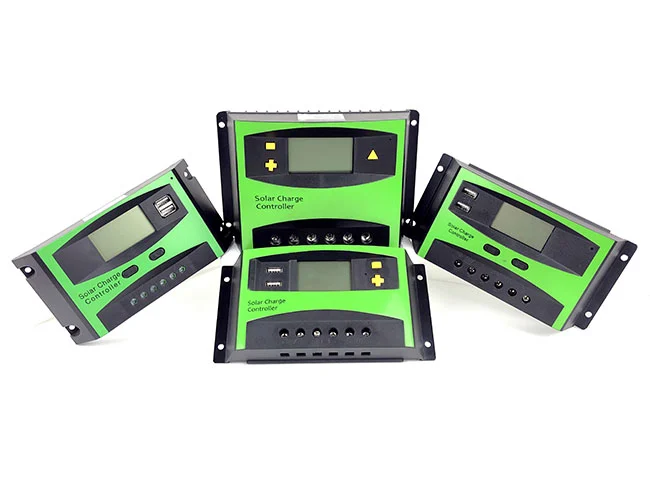

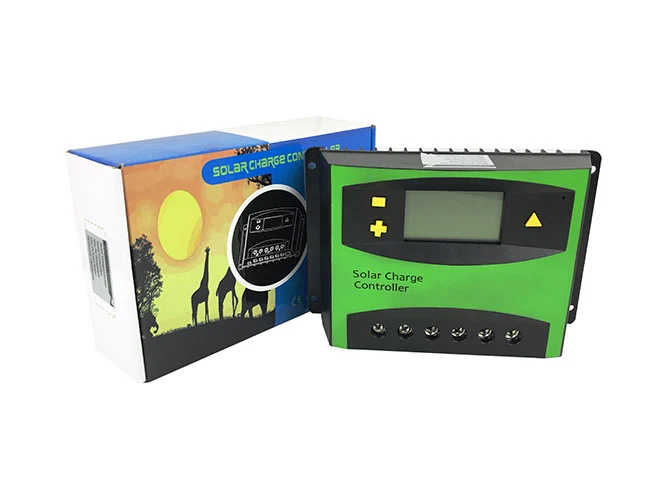

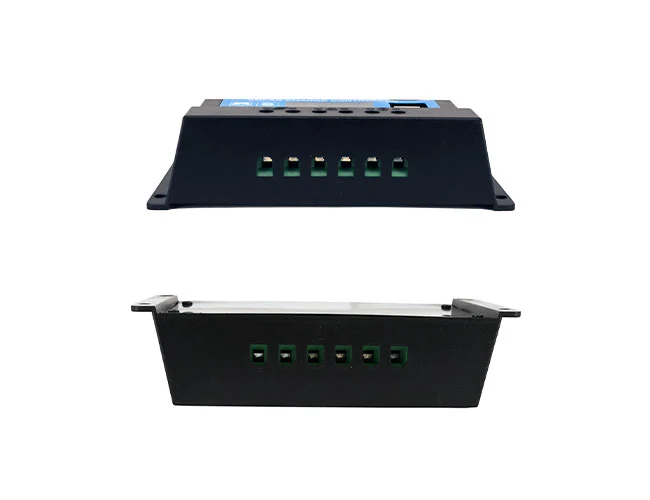

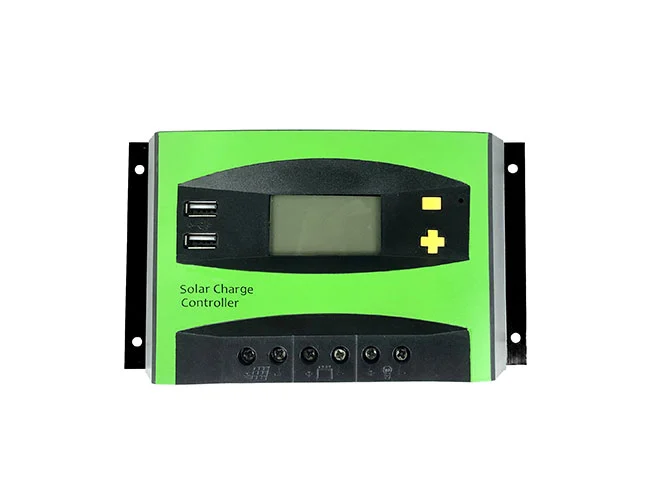

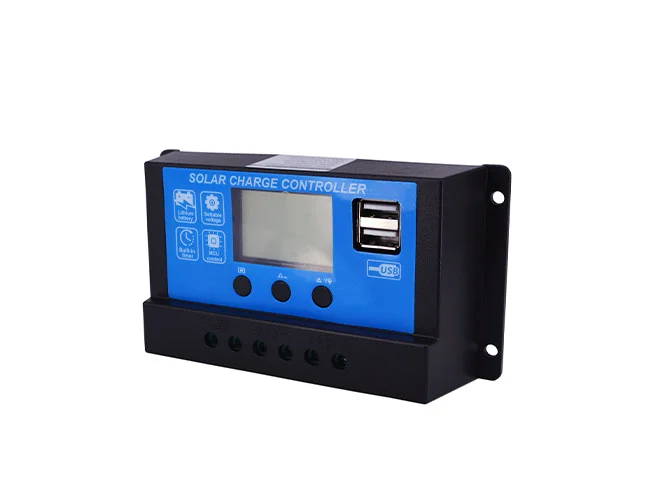

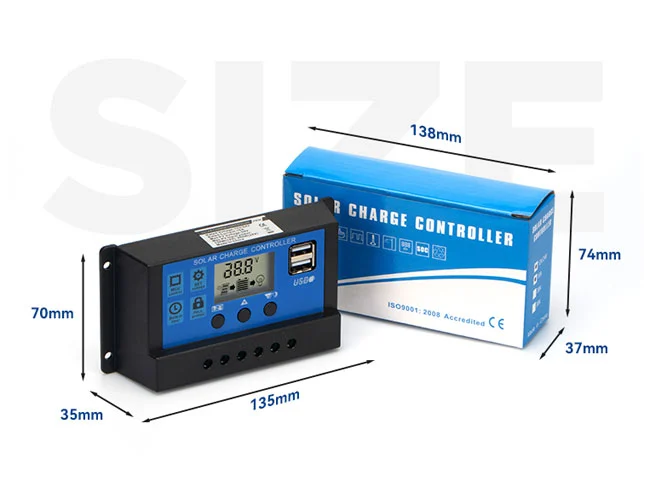

PWM Solar şarj regülatörü

Name: PWM Solar şarj regülatörü
Brand: Guangzhou Anern Energy Technology Co., Ltd

PWM, darbe genişliği modülasyonunu ifade eder, PWM güneş kontrol cihazı, bataryaya gönderilen darbelerin genişliğini (uzunluğunu) ve frekansını değiştirerek kendini düzenler. PWM regülasyonunda, güneş dizisinden gelen akım, pil durumuna ve şarj gereksinimlerine göre yavaş yavaş azalır.

En gelişmiş dijital tekniği benimseyen dahili LCD ile PWM solar şarj regülatörü. Çoklu yük kontrol modları, güneş off-grid sisteminde, trafik sinyallerinde yaygın olarak kullanılabilmesini sağlar.Güneş sokak ışıkları, Vb.

Ücretsiz teklif alın

PWM Solar Charge controller for solar off-grid system

Features of PWM Solar Charge Controller

System voltage of battery 12/24/36/48V automatic recognition;
Intelligent 4 stages charging: Bulk, Absorption, Equalize, Float;
LCD display with Back-lighting shows device’s operating data and working condition;
Support more kinds of battery: Lead-acid battery and lithium battery;
Double USB output 5V/2A;

Intelligent design multiple security protection,

simple , safe, reliable.

Solar panel voltage drops down to match battery voltage

System voltage of battery 12/24/36/48V automatic recognition

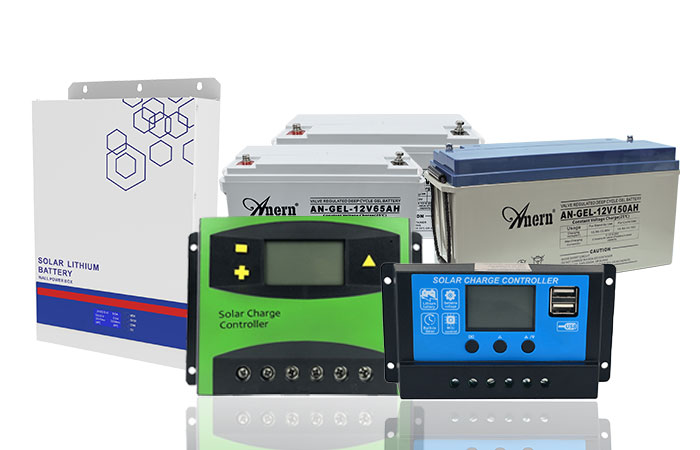

Support more kinds of battery

Lead-acid battery and lithium battery

Specification of PWM Solar Charge Controller

Item No.	DC Voltage(Auto)	Maximum Charge Current	PV Maximum Input Voltage	Carton Dimension	G.W	Remark
AN-ET20-10A	12/24V	10A	50V	425325225mm	9.8kg	Ampere display，no Ampere display，Aluminum plate heat dissipation
AN-ET20-20A		20A
AN-ET20-30A		30A
AN-AT20-10A	12/24V	10A	50V	505380210mm	12.8kg	Ampere display，no Ampere display，Aluminum plate heat dissipation
AN-AT20-20A		20A
AN-AT20-30A		30A
AN-AT40-30A	12/24V	30A	50V	415260355mm	14.7kg	charging and discharging Ampere display Large size copper terminal light control,time control double USB Aluminum plate heat dissipation
AN-AT40-40A	12/24V	40A	50V
AN-AT40-30A	12/24/48V	30A	100V
AN-AT40-40A	12/24/48V	40A	100V
AN-AT60-50A	12/24V	50A	50V	435365275mm	14.3kg	charging and discharging Ampere display Large size copper terminal light control,time control double USB Aluminum plate heat dissipation
AN-AT60-60A	12/24V	60A	50V
AN-AT60-50A	12/24/48V	50A	100V
AN-AT60-60A	12/24/48V	60A	100V
AN-MT2024-10A	12/24V	10A	50V	500370230mm	13.8kg	all-color LCD display, Alloy terminal, Ampere display
AN-MT2024-20A	12/24V	20A	50V
AN-MT4024-30A	12/24V	30A	50V
AN-MT4024-40A	12/24V	40A	50V
AN-MT6024-50A	12/24V	50A	50V	430385275mm	17.8kg
AN-MT6024-60A	12/24V	60A	50V
AN-MT6048-50A	12/24/48V	50A	100V
AN-MT6048-60A	12/24/48V	60A	100V
AN-VT2048-10A	12/24/36/48V	10A	100V	535380240mm	18kg	LCD display, Dual USB output， Ampere display
AN-VT2048-20A	12/24/36/48V	20A	100V	535380240mm	18kg
AN-VT3048-30A	12/24/36/48V	30A	100V	600445235mm	21kg
AN-VT4048-40A	12/24/36/48V	40A	100V	600445235mm	21kg
AN-VT5048-50A	12/24/36/48V	50A	100V	585445225mm	24.3kg
AN-VT6048-60A	12/24/36/48V	60A	100V	585445225mm	24.3kg
AN-VT8048-80A	12/24/36/48V	80A	100V	585445225mm	24.5kg
